2007-2018 6.7 Stage 1 24v Cummins Performance Head

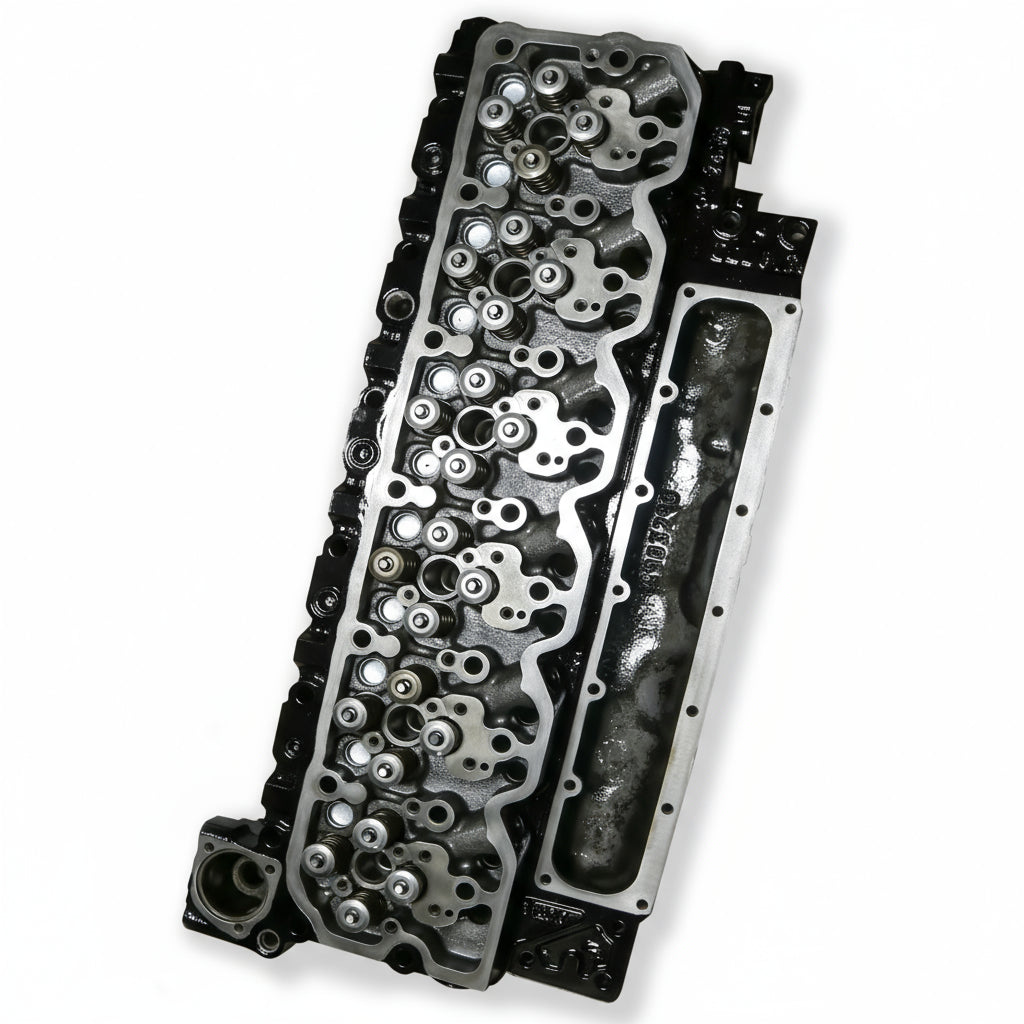

6.7 CR Stage 1 Cummins Performance Head

Our 6.7 CR Stage 1 Cummins Performance Head is a step up in performance without the extra expense and work involved with an aftermarket intake. This head includes everything in our HP Reman Head along with 105-pound valve springs and a 5-axis port job while retaining the factory intake plenum. This increases the flow on the intake from around 155 CFM stock to 220 CFM, enhancing low-end performance, decreasing boost pressure, and lowering EGTs. This, in turn, increases the amount of fuel you can burn, allowing you to make more power.

Key Features:

• Enhanced Performance: Upgraded to 105-pound valve springs, a 5-axis CNC port job, and thread in soft plugs.
• Improved Airflow: Intake flow increased from 155 CFM to 220 CFM.
• Factory Intake Plenum: Retains the factory intake plenum for ease of installation.
• Comprehensive Upgrades: Includes all features of our HP Reman Head.

Detailed Process:

• Option to Use Your Own Head: You can use your own head or one of our head cores.
• Complete Disassembly: Head is disassembled, and all soft plugs are removed.
• Cleaning and Blasting: Thorough cleaning and blasting to ensure a pristine surface.
• Crack Check: Performed to ensure structural integrity.
• New Components: Installation of all-new bronze guides and HD extra-large seats on both intake and exhaust sides.
• 5-Axis CNC Porting: Performed with the stock intake shelf in place for optimal airflow.
• High-Performance Valve Job: Precision CNC valve job performed for enhanced performance.
• Resurfacing: The head is resurfaced to meet exact specifications.
• Thorough Cleaning: Comprehensive cleaning process to eliminate all debris.
• Professional Painting: Painted for a durable and professional finish.
• Expert Assembly: Assembled with all new valve seals, soft plugs, and HD springs.
• Pressure Checking: Valves and coolant passages are pressure checked to ensure top quality and reliability.

Important Note:

*Cores must be in good condition with no cracks and must be rebuildable. D&J Precision Machine will inspect your core upon arrival to determine its suitability for rebuilding.

Upgrade your truck's performance and reliability with our 6.7 CR Stage 1 Cummins Performance Head.
